Designed for high-speed sawing applications, GARY CARBIDE's carbide saw tips offer excellent edge retention, ensuring consistent and efficient cutting. Our tips are engineered for use in a variety of materials, including wood, metals, and composites. They are built to withstand the extreme conditions of industrial cutting, providing exceptional durability and precision in every cut.
Band Saw Tips
| Grade | Binder % | Grain Size | Density | Hardness | T.R.S | KIC | USA Code | ISO Code | |
| g/cm3 | HRA | HV10 | N/mm2 | Mpa-m½ | |||||
| CK40 | 12 | Mediumfine | 14.30 | 88.8 | 1340 | 2800 | 18.6 | C1 | K40 |
| MH10F | 10 | Sub-micron | 14.45 | 91.8 | 1600 | 3800 | 11 | C2 | K30 |
| MH12 | 12 | Sub-micron | 14.15 | 918 | 1600 | 3800 | 13.4 | C2 | K40 |
| MH15 | 15 | Sub-micron | 13.95 | 90.1 | 1380 | 3800 | 15 | C2 | K40 |

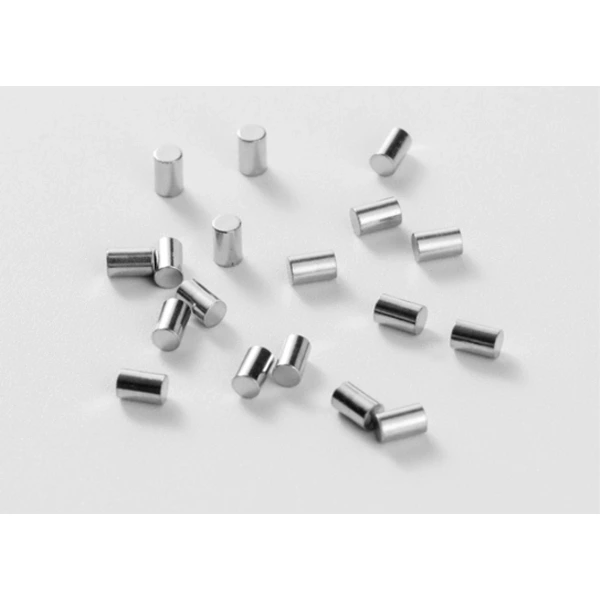

Cylinders
| Type | D | L | Tolerance |
| mm | mm | ||
| Ø1.32XL | 1.32 | 2.0~4.0 | ±0.05 |
| Ø1.60XL | 1.60 | 2.0~4.0 | ±0.05 |
| Ø1.98XL | 1.98 | 2.0~4.0 | ±0.05 |
