Grade Recommendation by Applications
| Grade | Stee | Stainless Steel | Castlro | Aluminum | Acrylic |
| MH4 | ★★★★ | ★★★ | |||
| MH6 | ★★★ | ||||
| CX30 | ★★★★ | ★★★ | ★★★ | ||
| CP30 | ★★★ | ★★ | ★★ | ||
| CP35 | ★★★ | ★★ | ★★ | ||
| CM T55 | ★★★★ | ||||
| CMT80A | ★★★★ |
*: Cermet Grade
Notes
★Moderate ★★OK ★★★Verygood ★★★★Excellent
Sawtooth Metal Processing

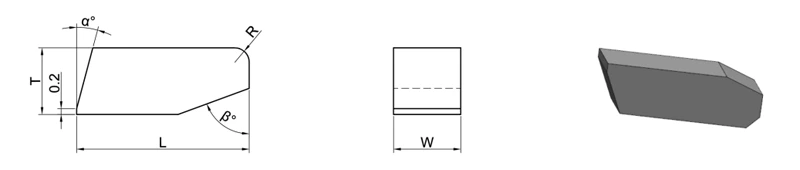

| Type | L | T | W Max | α° | β° | R |
| mm | mm | mm | ||||
| CX5025-W | 5.0 | 2.5 | 3.5 | 15° | 50° | 0.5 |
| CX6023-W | 6.0 | 2.3 | 4.0 | 15° | 70° | 0.5 |
| CX6520-W | 6.5 | 2.0 | 4.0 | 20° | 60° | 0.5 |
| CX8030-W | 8.0 | 3.0 | 4.5 | 6° | 45° | 0.6 |
| NCX10540-W | 0.5 | 4.0 | 10.0 | 8° | / | 0.5 |
| NCX12040-W | 12.0 | 4.0 | 10.0 | 8° | / | C0.4 |
Non-standard specifications and grades can be provided upon request.
