GARY CARBIDE's strobe blanks are designed for precision and durability in the manufacturing of cutting and drilling tools. These blanks are crafted from high-quality carbide materials to ensure superior performance and extended tool life. Suitable for high-stress applications, our strobe blanks deliver consistent results, reducing downtime and increasing productivity.

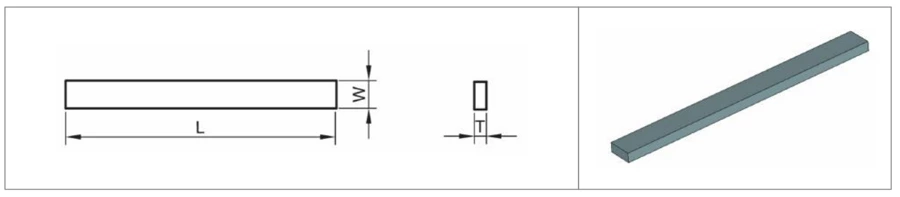

Fixed Length Strobe Blanks
Dimensions (metric)
| Type | L | W | T |
| mm | mm | mm | |
| 20XWX2.0 | 20 | 1.6~8.0 | 2.0 |
| 25XWX2.0 | 25 | 1.6~8.0 | 2.0 |
| 26XWX2.0 | 26 | 1.6~8.0 | 2.0 |
| 30XWX2.0 | 30 | 1.6~8.0 | 2.0 |
| 35XWX2.0 | 35 | 1.6~8.0 | 2.0 |
| 38XWX2.0 | 38 | 1.6~8.0 | 2.0 |
| 40XWX2.0 | 40 | 1.6~8.0 | 2.0 |
| 45XWX2.0 | 45 | 1.6~8.0 | 2.0 |
| 50XWX2.0 | 50 | 1.6~8.0 | 2.0 |
| 55XWX2.0 | 55 | 1.6~8.0 | 2.0 |
| 60XWX2.0 | 60 | 1.6~8.0 | 2.0 |
| 65XWX2.0 | 65 | 1.6~8.0 | 2.0 |
| 70XWX2.0 | 70 | 1.6~8.0 | 2.0 |
| 75XWX2.0 | 75 | 1.6~8.0 | 2.0 |
| 90XWX2.0 | 90 | 1.6~8.0 | 2.0 |
Dimensions (inch)
| Type | L | W | T |
| Inch | lnch | Inch | |
| ST1XXX | 1.000" | 0.093"~0.280" | 0.125" |
| ST2XXX | 1.250" | 0.093"~0.280" | 0.125" |
| ST3XXX | 0.750" | 0.093"~0.280" | 0.125" |

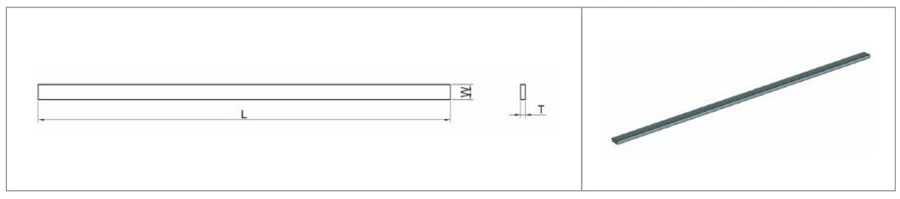

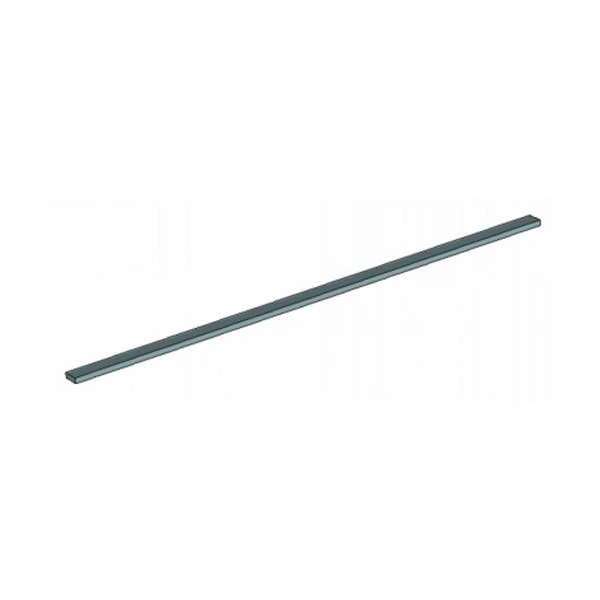

Long Strobe Blanks
| Type | L | W | T |
| mm | mm | mm | |
| 310XWX2.0 | 310 | 2.0~8.5 | 2.0 |
